Description

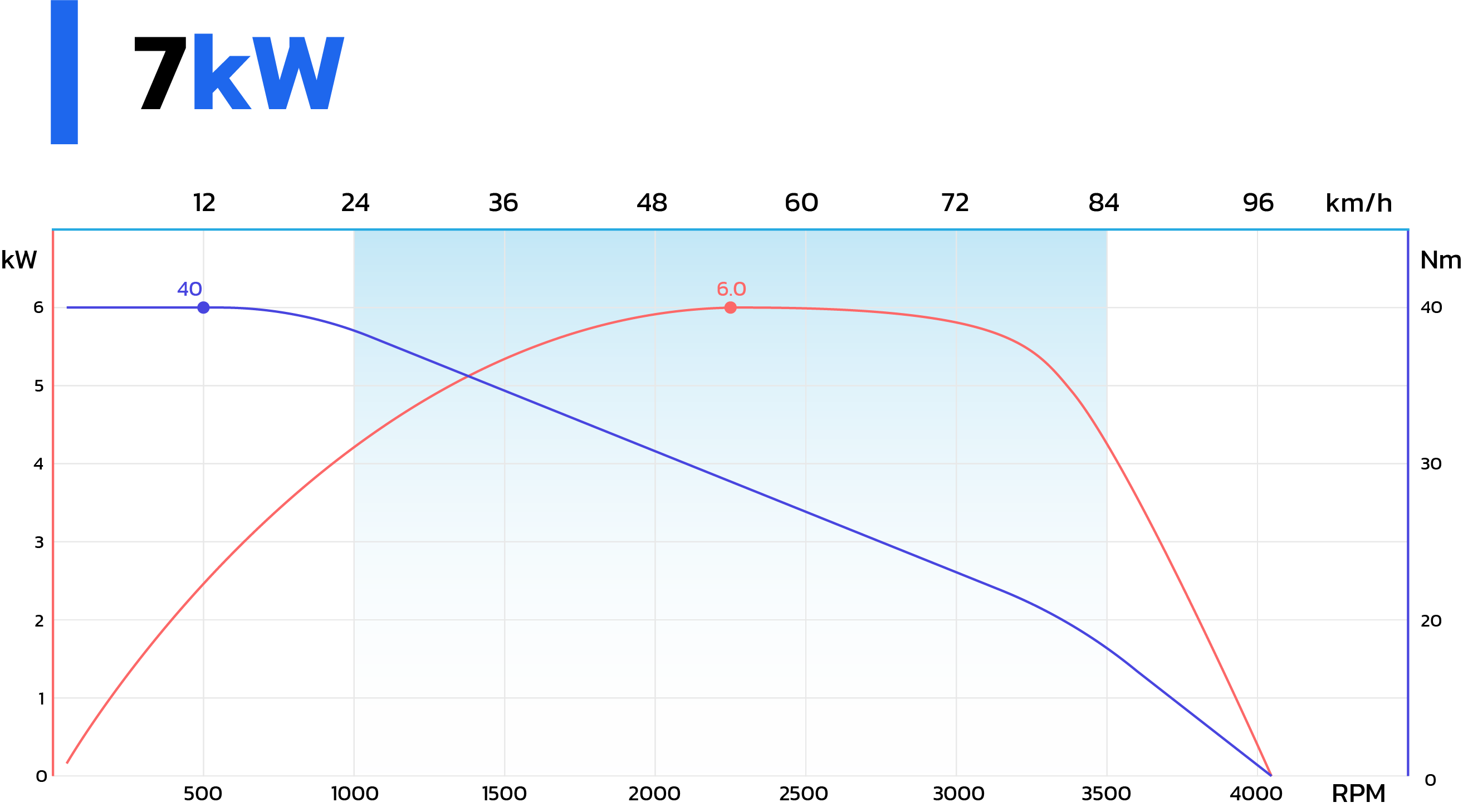

POWER DATA
Motor power: 7kW (9Hp)
Torque: 30Nm
RPM: 3200 RPM
Top speed: Up to 90 km/h
Throttle: Hall sensor (durable)
Cooling: Air (Aluminium radiator)
Battery: Li-Ion with BMS and physical fuse protection
Driving range: 15 min. (depending on track and conditions)
Charger: AC(90-240V) to DC (48V)
Charging time: 45-60 min. (20%-80%)
Warranty: 1 year unlimited driving hours
IP level: 64
BATTERY
– Quick swap system, replace it in less than 2 min.
– 1x BMS and physical fuse protection
– Air cooling (Aluminum radiators)
– Capacity 35Ah/48V
– Discharge peak 150A (continuous 120A)
– Charging power 20A/48V
– Weight 12,5kg
– 1-year unlimited cycle warranty
– Maintenance service after the warranty time
CHARGER
– Charging voltage 48V (nominal)
– AC to DC with all types of AC plugs
– Charging power 20A (standard)
– Air cooling (aluminum radiator)
– Weight 5,5kg
– 100% Automated system
– 1-year unlimited warranty
– Maintenance service after the warranty time

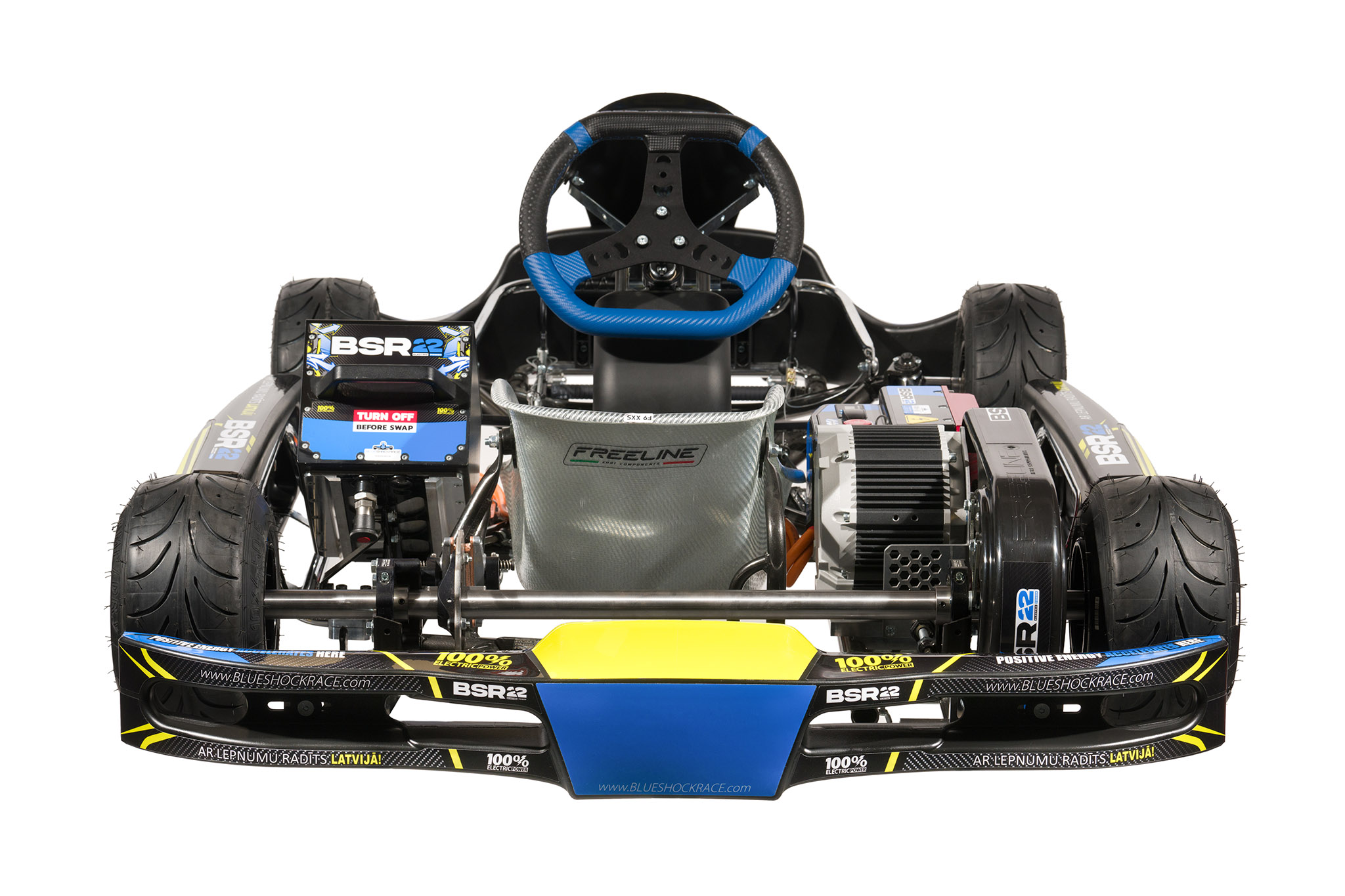

BSR 2.2 Power Units are designed so that they can be quickly and efficiently installed on any chassis instead of the standard internal combustion engine within 15-20 minutes without additional equipment and knowledge.
All that must be taken into account is the location of the fastening and the dimensions of the components. Fastenings are designed so that they can be adapted to different chassis. It is possible to develop specific fastenings on request.
