BSR Quick Swap Battery System offers three key advantages for karting businesses, even those without experience with electric karts.
With QSB, you can reduce your investment costs and expenses, leading to increased profits.
ELECTRIC LEISURE KARTS
The Quick Swap battery system provides practical unlimited
driving range and significantly reduces project investments.
https://www.youtube.com/watch?v=sA05SeABzLw

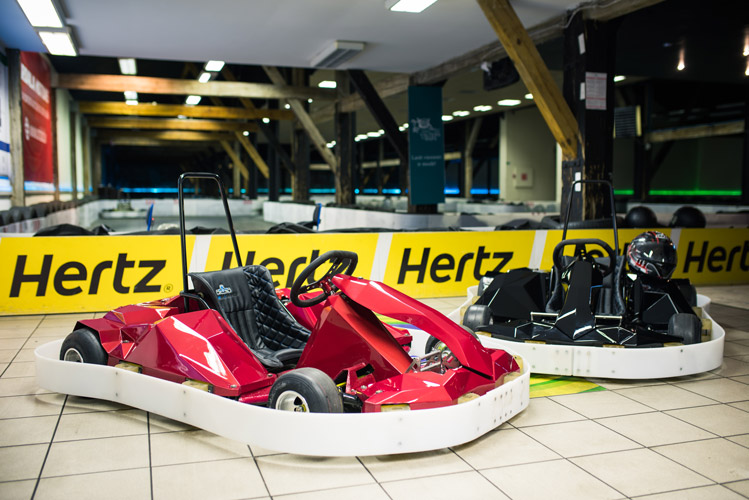

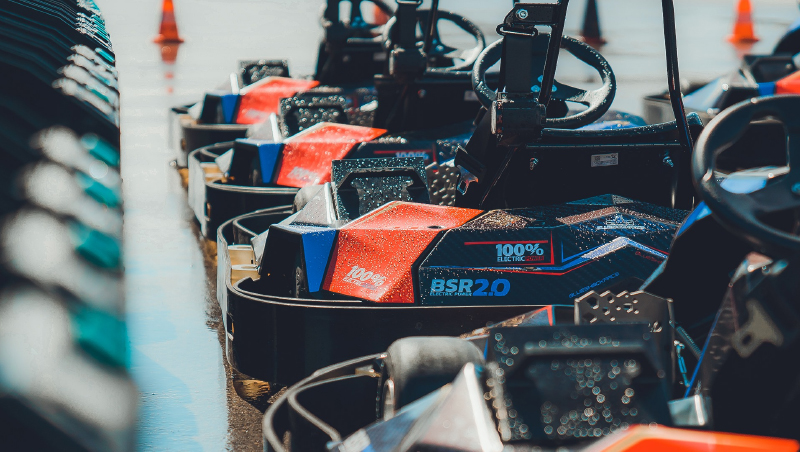

ELECTRIC RENTAL KART BSR 2.0
For adults (BIG)
SPECIFICATION
Chassis: BSR 2.0 Rental (Chromoly steel 32x2mm)
Body: ABS plastic 4-5 mm
Seat: Adjustable with a head defender (L, XL, XXL)
Steering wheel: 300mm or 320mm diameter
Protection: 10mm PE plastic (30mm polyurethane shock absorbers)
Battery: 35Ah / 48V Li-Ion (autonomy 30+ min)
QSB: Quick Swap Battery System (swap in 30 sec)
Power: Adjustable for each track
Top speed: up to 80km/h
Sensors: Overheating, braking
Charger: AC/DC 1,5kW (110-240V)
Brakes: Righetti hydraulic, 200mm disc (rear)
Rear axle: 30×1000 mm
Transmission: Timing belt (30x1000xM8)
Rims: Alloy (standard)
Kart weight: 135 Kg (including battery)
EXTRA FEATURES
Front lights: LED Neon stripes WHITE
Rear braking lights: LED Neon stripes RED
Seat Belt: Adjustable 3-point
Remote control: Power levels and safety shutdown options
Brakes: Regenerative braking (adjustable for each track)
Nominal power options: 3kw – 7kW (adjustable by software)
BSR SYSTEM ADVANTAGES
LOWER INVESTMENT COSTS
Reduce karting investment costs by approximately 30% by avoiding purchasing twice as many karts to accommodate fixed battery models. With QSB, one set of karts can be charged while another provides driving sessions.
REDUCED SPACE COSTS
Lower Pit-Lane space requirements by about 40%, enabling you to expand your track in small or compact locations or reduce venue rental costs. This solution is particularly valuable in high-cost locations with limited space. You can save up to 7% of annual rental and related expenses.
LOWER ELECTRICITY COSTS
Reduce electricity consumption costs by charging batteries outside of the karts. This approach provides a more even distribution of charging power, reducing peak load demands and saving up to 10% on electricity costs associated with karting operations.
Make the most of your karting business investment by choosing the BSR Quick Swap Battery System. With lower investment, space, and electricity costs, you can increase your profits and provide a better experience for your customers.
BEST SUITED PROJECTS
BSR Karting is the perfect solution for small and medium-sized projects with limited space and budget. In such cases, the BSR system can provide the most effective solution at the most competitive price. Our Quick Swap Battery System allows for multiple rides per hour on a single kart, with battery swapping taking mere seconds, while the total ride time for adult karts averages around 25 minutes. This means that the recommended ride length for one session is between 6-10 minutes, allowing for 2-3 ride sessions with just one battery swap.
Our karts power and other metrics are programmed on-site to adapt to the specific track characteristics, ensuring the best ride experience and maximum energy efficiency.
OPERATING COSTS
BSR system is one of the most energy-efficient karting systems worldwide, consuming on average 0.7 KWh of electricity per 10-minute ride, which amounts to about 0.20 Euro in energy costs. If one kart completes around 20 sessions per day, it would cost a total of 4.00 Euro.
Karting tracks demand rigorous use, and each track requires at least one skilled mechanic to perform regular maintenance on the karts. Depending on the track specifications, monthly service and repair costs for a single kart may range from 30-150 Euros. With better technical supervision and high-quality track planning, kart maintenance costs can be significantly reduced.

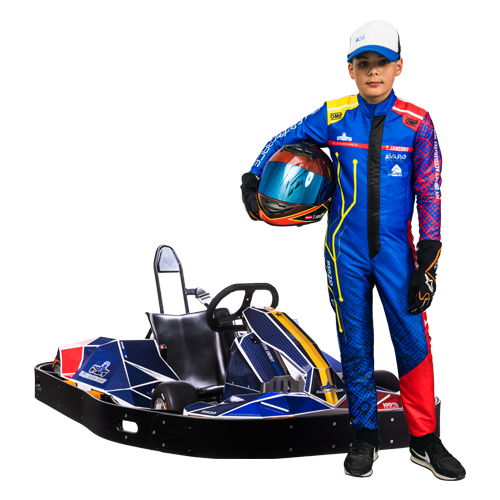

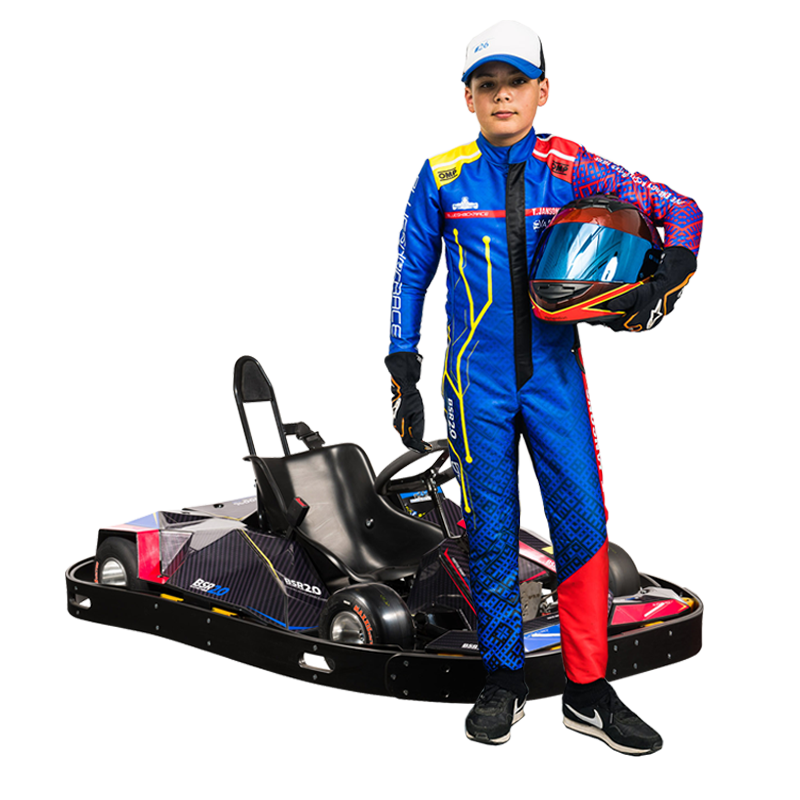

ELECTRIC RENTAL KART BSR 2.0
Kart for Juniors
SPECIFICATION
Chassis: BSR 2.0 Rental (Chromoly steel 32x2mm)
Body: ABS plastic 4-5 mm
Seat: Adjustable with a head defender (L, XL, XXL)
Steering wheel: 300mm or 320mm diameter
Protection: 10mm PE plastic (30mm polyurethane shock absorbers)
Battery: 35Ah / 48V Li-Ion (autonomy 30+ min)
QSB: Quick Swap Battery System (swap in 30 sec)
Power: 2kw-4kw nominal power (Adjustable for each track)
Top speed: Up to 45 km/h (limited)
Sensors: Overheating, braking
Charger: AC/DC 1,5kW/ 2,5kW (110-240V)
Brakes: Birel ART, 200mm disc (rear)
Rear axle: 30×1000 mm
Transmission: Timing belt (30x960xM8)
Rims: Alloy (standard)
Kart weight: 105 Kg (including battery)
EXTRA FEATURES
Front lights: LED Neon stripes WHITE
Rear braking lights: LED Neon stripes RED
Seat Belt: Adjustable 3-point
Remote control: Power levels and safety shutdown options
Brakes: Regenerative braking (adjustable for each track)
Nominal power options: 2kw – 4kW (adjustable by software)
https://www.youtube.com/watch?v=dIFiKLxkWys

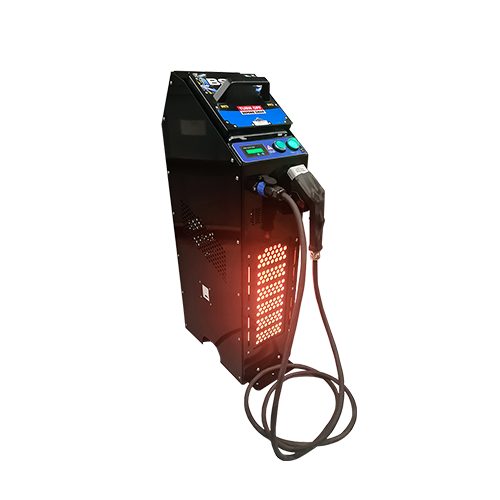

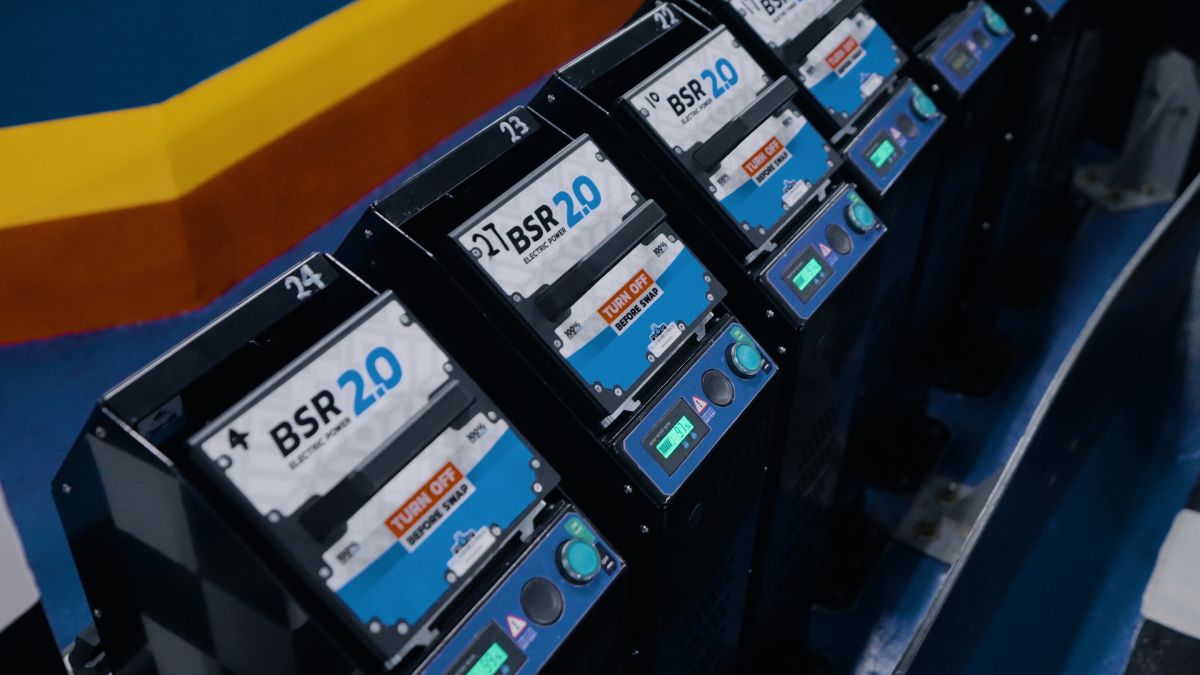

BSR 2.2 ELECTRIC KART CHARGING DOCK
Suitable for indoor and outdoor use
SPECIFICATION
Automated charging with LED indications
Air cooling for charger and battery
Compact charging system next to pit lane
CHARGING TIME
30 min – 60 min (from 20-90%)*
*average charging time from 20% to 90%, this may vary depending on temperature and/or degradation level of battery
CHARGING POWER
Normal charging: 1,2 kW (110 – 240V)
Input voltage 90-265VAC
Rated power 1.2kW
Efficiency 93%
Output Voltage: 48V
Output Current: 20A
WARRANTY
1 year unlimited warranty
Maintenance service after the warranty time

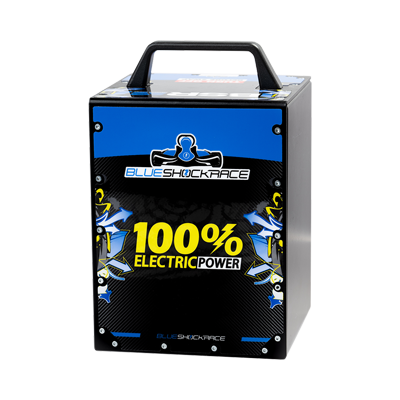

BSR 2.2 ELECTRIC KART BATTERY PACK
Light weight electric kart battery pack with Quick Swap System - 12,5 Kg
FEATURES
Quick swap system, replace it in less than 30 seconds
Extra air cooling (at the charging state)
2x BMS and physical fuse protection
BATTERY POWER
Capacity 35Ah
Discharge peak 200A
Charging power 1.2kW (20A/48V)
Weight 12,5kg
CHARGING TIME
30 min – 60 min (from 20-90%)*
*average charging time from 20% to 90%, this may vary depending on temperature and/or degradation level of battery
WARRANTY
1-year unlimited cycle warranty
Buy Back option after the warranty
Maintenance service after the warranty time
https://www.youtube.com/watch?v=C7HJ02nR-gs
